How RFID Plays a Role in Road Monitoring and Toll Collection

The Rise of RFID in Modern Transportation

With the growing number of vehicles on roads worldwide and the pressing need for smarter transportation systems, governments and city planners have turned to technologies that can improve efficiency, reduce congestion, and enable seamless toll operations. Among these technologies, Radio Frequency Identification (RFID) has emerged as a pivotal component in modern road infrastructure.

RFID offers a contactless, fast, and reliable method to identify vehicles, automate toll collection, and monitor traffic—without the delays associated with manual checks or the limitations of optical systems. This article delves into how RFID functions within road monitoring and toll systems, detailing the technical processes, where and how RFID tags are applied to vehicles, and real-life implementations that highlight its effectiveness.

RFID technology works through a simple yet powerful concept: a reader sends out radio waves that activate a nearby tag, which then transmits a unique identifier back to the reader. In the context of road usage, RFID allows for real-time vehicle identification without the need for stopping or even slowing down. This capability is particularly useful for Electronic Toll Collection (ETC), where minimizing disruption to traffic flow is crucial.

Unlike ANPR (automatic number plate recognition) systems that rely on cameras and often struggle under poor lighting or weather conditions, RFID tags are unaffected by visibility issues and offer consistent, high-speed performance.

Tag Placement: Windshields, Plates, and Mirrors

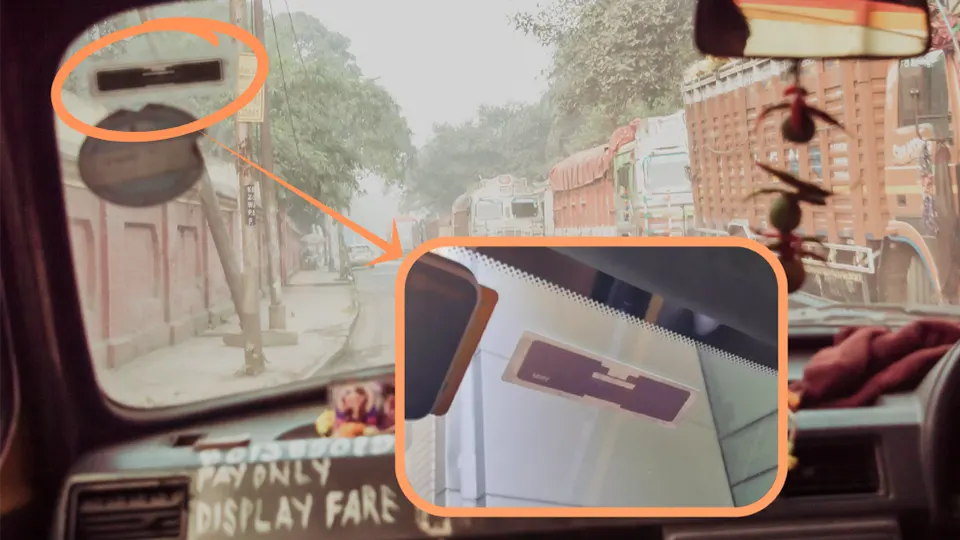

When it comes to actual deployment, RFID tags are typically affixed to the windshield of vehicles. This is the most common placement method, especially in large-scale tolling systems such as those used in the United States (E-ZPass), China (ETC), and India (FASTag). The tags are usually passive UHF inlays enclosed in tamper-evident materials and are placed behind the rearview mirror or in the upper center of the windshield.

This position ensures that the tag is within the direct line of RFID reader fields installed at toll gates or overhead gantries, while remaining relatively protected from tampering or interference. The tags are linked to the vehicle’s registration data and payment account during issuance, creating a seamless identification and billing process.

In certain systems, especially those used for commercial fleets or where enhanced durability is needed, RFID tags are also applied to license plates or headlamps. These are typically ruggedized on-metal UHF tags that can withstand harsh outdoor conditions.

For example, in some logistics parks and industrial areas in Southeast Asia, fleet trucks have metal-mount RFID tags fixed directly onto their front plates to allow fast entry and exit through automated gates. Similarly, specialized RFID-enabled license plates have been piloted in Dubai and Texas, embedding the chip directly into the license plate itself. This enables both tolling and vehicle tracking for law enforcement or administrative purposes.

Another alternative method is the use of rearview mirror hang tags, which are more common in short-term use cases such as temporary vehicle access control, visitor parking, or event-based road management. These tags are not permanently fixed to the vehicle but can still be reliably read by UHF readers placed along controlled access points. However, because they are removable, they are typically used in systems that don’t require high security or identity permanence.

Infrastructure and System Operations

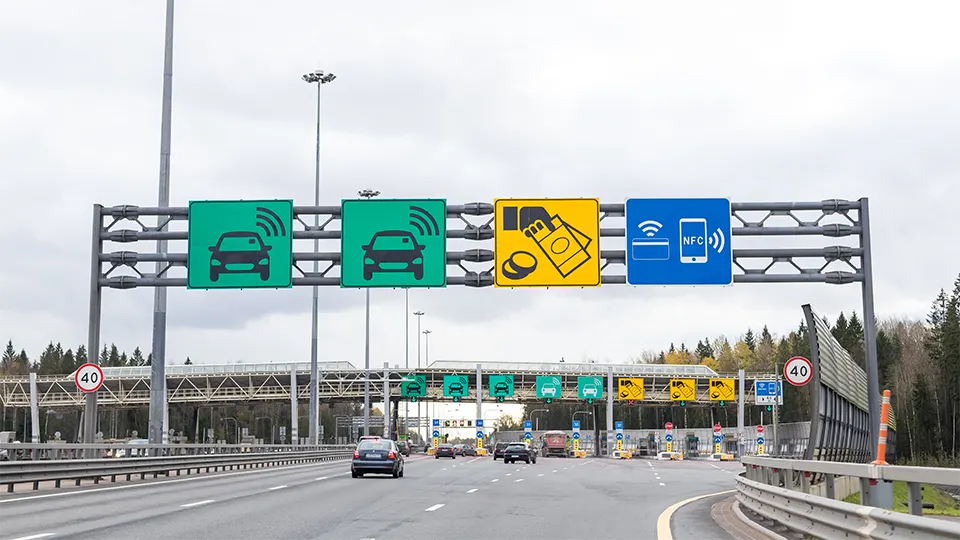

On the roadside infrastructure side, RFID readers are mounted either on overhead gantries, toll booth structures, or embedded in road barriers. These readers are connected to backend systems that manage vehicle identity verification, transaction processing, and data logging. As a vehicle approaches the checkpoint, the reader emits a signal that activates the tag. The tag responds with its ID, which the system checks against a central database. If the tag is valid and associated with a funded account, the barrier lifts automatically, or the system simply logs the transaction if it’s a barrier-free tolling road. If the tag is invalid, the vehicle may be diverted or flagged for manual inspection.

Security and privacy are also important considerations. Since RFID tags broadcast their IDs when activated, it’s crucial that systems employ encrypted communication and backend validation. Advanced ETC systems use short-range, directional antennas to minimize unintended reads, and tag data is often anonymized or encrypted during transmission to prevent tracking by unauthorized entities.

Global Use Cases: FASTag, ETC, and E-ZPass

One of the most compelling real-world examples of RFID in tolling is the FASTag system in India, which became mandatory for all vehicles on national highways as of February 2021. FASTag uses passive UHF RFID tags affixed to vehicle windshields. Each tag is linked to a prepaid digital wallet. As the vehicle passes through a toll plaza, it’s automatically detected and the toll fee is deducted in real time.

This system has significantly reduced waiting times, congestion, and fuel consumption at toll booths. According to the National Payments Corporation of India (NPCI), over 6 billion transactions have been processed through FASTag since its rollout, demonstrating its effectiveness and scalability.

In China, the nationwide ETC system operates on similar principles, with UHF windshield tags and roadside antennas installed on major expressways. The country has gone a step further by integrating ETC with traffic monitoring, using RFID data to track real-time vehicle movements for smart city planning.

For instance, in cities like Shanghai and Shenzhen, RFID data is merged with traffic light control systems to optimize traffic flows during peak hours. Additionally, RFID is being used to monitor freight vehicles entering restricted urban areas, ensuring compliance with environmental and zoning regulations.

The United States has also seen widespread use of RFID in toll collection through systems like E-ZPass, which operates across 17 states in the Northeast and Midwest. Tags are mounted on windshields, and toll gantries automatically identify and charge vehicles without requiring them to stop. In addition to tolling, E-ZPass data is used for traffic studies and congestion analysis. The system’s interoperability across multiple states and highways illustrates how RFID can support large, interconnected transport networks.

Future Outlook

Despite its many advantages, RFID deployment in road systems is not without challenges. One common issue is tag misplacement—if a driver installs the tag incorrectly, say too low on the windshield or behind a tinted area, it may not be read properly. Additionally, vehicle metal parts, electronic window films, or weather conditions (like snow or rain on the reader lens) can sometimes affect signal transmission, although to a lesser extent than optical systems.

To address these concerns, many ETC operators provide clear instructions or even physical guides at registration centers to ensure proper tag installation. Some also conduct regular audits to maintain high system reliability.

Looking ahead, the role of RFID in road monitoring is set to expand beyond tolling. As part of intelligent transportation systems (ITS), RFID can be integrated with IoT sensors, AI-based traffic prediction, and vehicle-to-infrastructure (V2I) communications. For example, future smart highways may use RFID to detect lane usage, enforce dynamic speed zones, or even interact with autonomous vehicles to provide real-time road updates. Combined with mobile apps and cloud analytics, this creates a closed-loop ecosystem where data from vehicles is not only used for billing but also for optimizing the overall traffic environment.

In conclusion, RFID technology has become a cornerstone in the modernization of road systems, enabling fast, efficient, and contactless vehicle identification for tolling and monitoring. By correctly applying tags—primarily on windshields, license plates, or mirrors—and integrating readers into road infrastructure, cities and highway authorities can drastically improve traffic flow, reduce operational costs, and offer better services to both commuters and administrators. From India’s FASTag to America’s E-ZPass and China’s ETC network, RFID’s impact on the way we move is already visible—and it’s only growing stronger.
